Fiber Optical Power Meter OPM-201

  • Product description: Testing instrument for fiber-optic network,CATV,Telecom.
  • INQUIRY

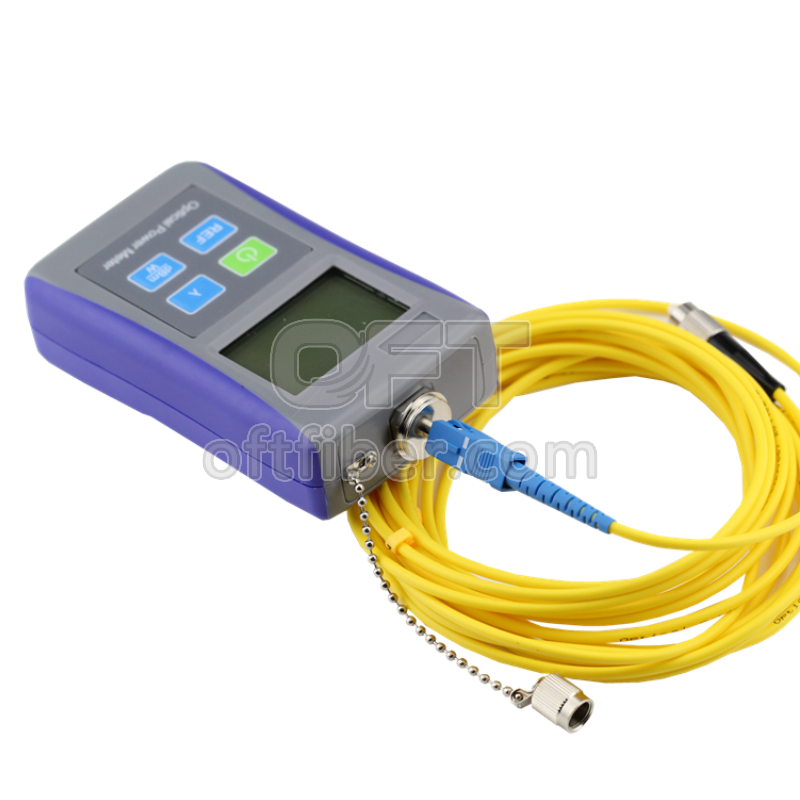

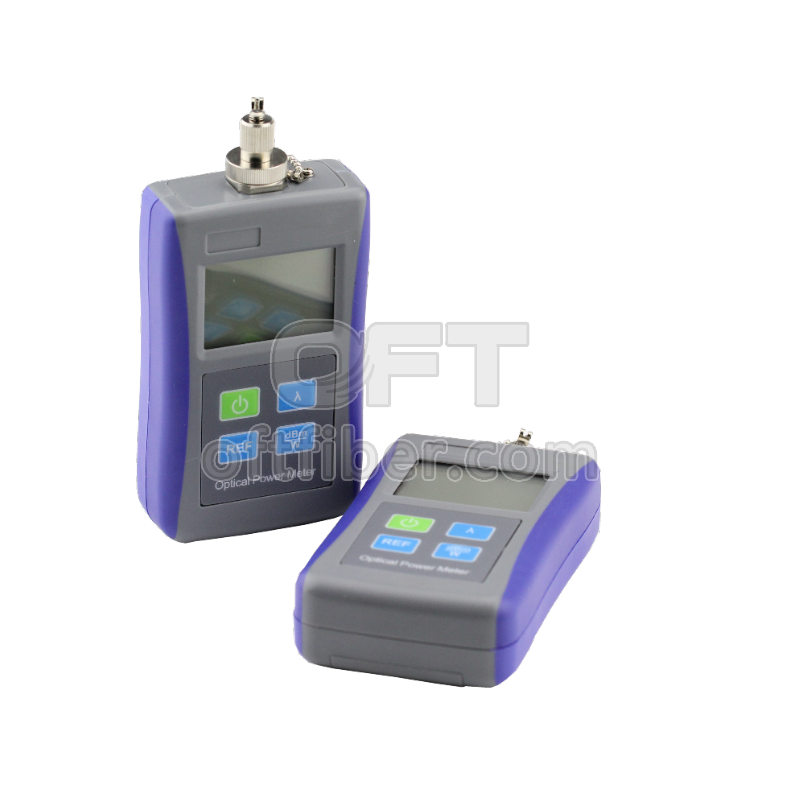

OPM-201 Handheld Optical Power Meter is a self-developed test instrument which is widely used for installation, operation and maintenance of fiber-optic network. It features smart appearance, backlight, auto-shutdown and widely dynamic range, good testing precision and universal optical connector for FC/SC/ST.

Features

1. High sensitivity, large dynamic range

2. Universal connector interface: FC/SC/ST (optional LC/MU.)

3. Quick response, without warm-up and reduce testing time

4. Low-voltage display function

5. Optional auto-shutdown feature

6. Automatic calibration function

7. Directly displaying relative ratio test

8.The relative reference value and the relative value displaying simultaneity

9. Large LCD display and backlight

Application

1. Maintenance Telecom

2. Maintenance CATV

3. Test Lab of Fiber Optic

4. Optical fiber sensors

Specifications

Type

201A

201B

Wavelength (nm)

800~1650

Detector

InGaAs

Optical Connector

FC SC ST/ Universal 2.5mm adaptor (LC,MU can be optional )

Measurement Range (dBm)

-70~+10

-50~+26

Uncertainty

±5%

Standard Wavelength (nm)

850/ 1300/ 1310/ 1490/ 1550/ 1625

Resolution (dB)

0.01

Power Supply

3pcs AAA 1.5V batteries

working time (h)

120

Operating Temperature (°C)

-10~+50

Storage Temperature(°C)

-20~+70

Automatic shutdown (min)

10

Dimension (mm)

125 (L)*65 (W)*29 (H)

Weight (g)

160(include batteries)
