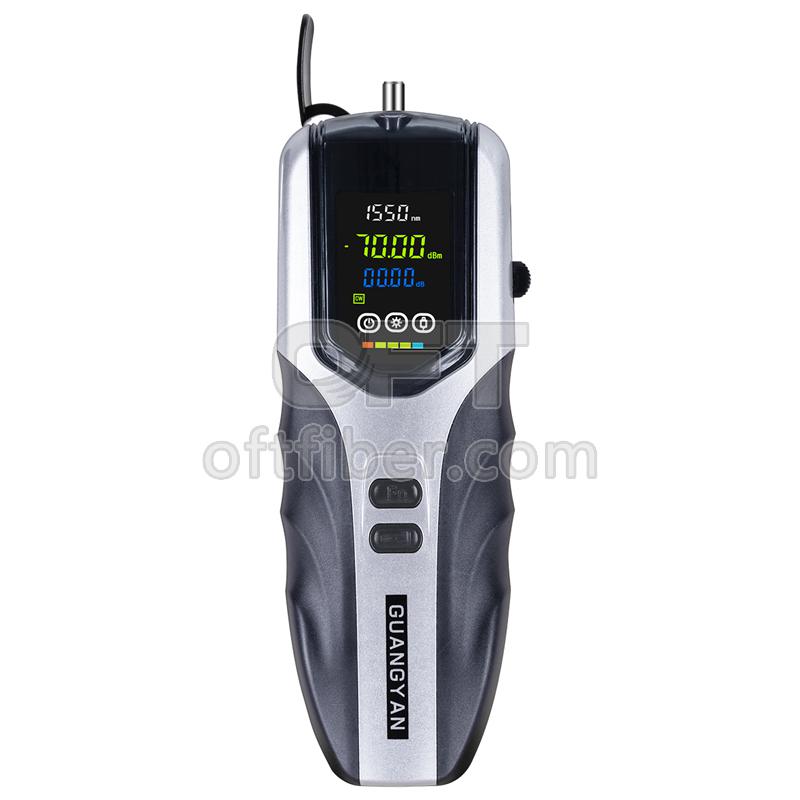

OPM-203 series handheld optical power meter products are mainly used for continuous optical signal power measurement and fiber line continuity test.It is controlled by a single-chip microprocessor with complete functions.
It is widely used in optical cable construction and maintenance, optical fiber communication, optical fiber sensing, optical CATV and other fields.The optical power meter has a compact shape, the body shape design meets the ergonomic requirements, and the advanced cold plastic molding process is used, which is beautiful and durable.The built-in detector can be well protected.
Data sheet:
|
Model |
OPM-203-A |
OPM-203-B |
OPM-203-C |
|
Power measurement range |
-70~+3 |
-70~+10 |
-50~+26 |
|
Wavelength range |
800～1700 |
||
|
Interface Type |
2.5mm universal adapter |
||
|
Probe type |
InGaAs |
||
|
Detection area（um） |
300 |
||
|
Uncertainty |
±5% |
||
|
Standard wavelength（nm） |
850、980、1300、1310、1490、1550、1625 |
||
|
Display resolution |
Linear display: 0.1%, logarithmic display: 0.01dBm |
||
|
Operating temperature(℃) |
-20～+60 |
||
|
Storage temperature(℃) |
-25～+70 |
||
|
Drop height（m） |
≤2 |
||
|
Quiescent Current（uA） |
≤2 |
||
|
Working current（mA） |
≤35 |
||
|
Recharging current（mA） |
300 |
||
|
Charging time（h） |
≤3 |
||
|
Automatic shutdown time(min) |
10 |
||
|
Battery life(h) |
≥13 |
||
|
Standby time（Day） |
≥365 |
||
|
Instrument size(mm) |
127*45*20 |
||
|
Package size(mm) |
150*62*40 |
||
|
Power supply |
lithium battery |
||
|
Net weight(g) |
87 |
||
|
Gross weight(g) |
110 |
||
