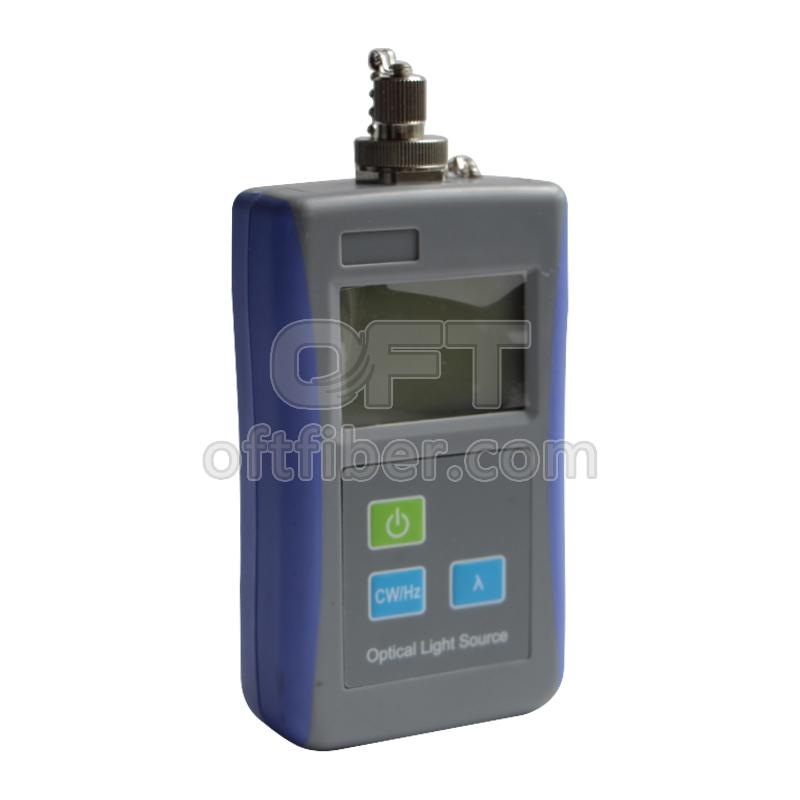

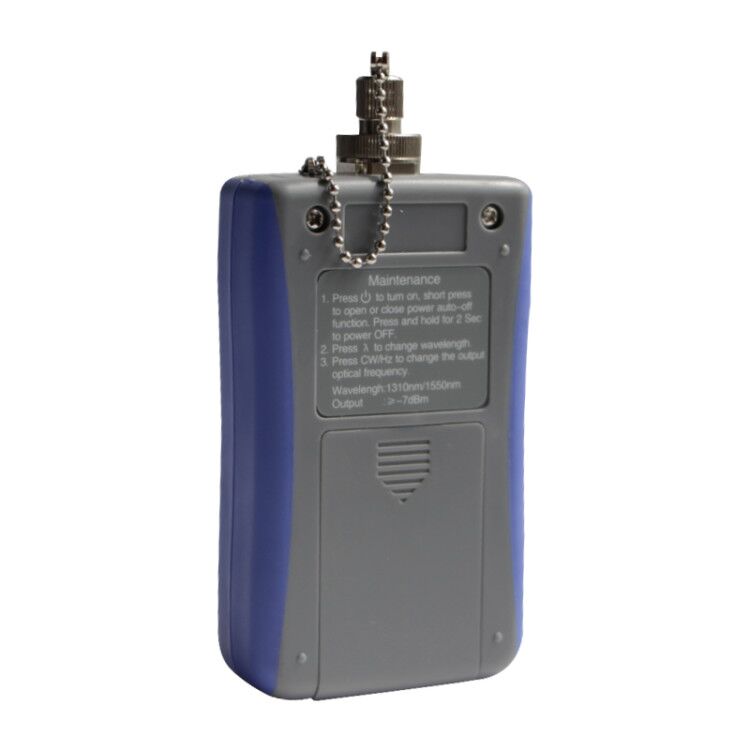

OLS-503 series of high stability of the laser light source is a self-developed instrument, Which features advanced control technology , high output, ultra low-power operation. It can work at 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, 850nm,650nm, single wavelength ,dual-wavelength or tri -wavelength. It can export a variety of modulation frequency (CW, 270HZ, 1KHZ, 2KHZ). It is widely used in optical communication, optical measurement, optical fiber sensing, and so on.
Specifications
Optical
Laser Source
1.FC/SC/ST connector
2.Single/ Dual/ Tri -wavelength
3.LCD back light
4. 3 years warranty
Features
1. Good stability in output power
2. Optional auto-shutdown
3. Large LCD display and backlight
4. Battery power display
Application
1. Maintenance Telecom
2. Maintenance CATV
3. Test Lab of Fiber Optic
4. Optical fiber sensors
Specification
|
Type |
503 |
|
Emitter Type |
FP-LD |
|
Wavelength(nm) |
650,850,1300,1310,1490,1550,1625(1-3 wave) |
|
Optical Connector |
FC(SC/ST can be optional) |
|
Output Power (dBm) |
≥ 3m w @ 650nm; ≥ -7dBm @ 850/1300nm ≥ -7,-3,0dBm @ /1490/1550/1625nm |
|
Output Stability (dB) |
±0.04@20°C@15min |
|
Modulation Frequencies |
CW,2Hz@650nm;CW,270Hz,1KHz,2KHz@others |
|
Fiber Type |
SM,MM |
|
Power Supply |
AAA 1.5V(3pcs batteries) |
|
working time (h) |
40 |
|
Operating Temperature (°C) |
-10~+50 |
|
Storage Temperature (°C) |
-20~+70 |
|
Dimension (mm) |
125(L)*65(W)*29(H) |
|
Weight (g) |
160 |
Ordering Information:
Standard Accessories:
FC/PC,SC/PC,ST/PC connectors , Manual, Carrying Bag, and Battery.
Optional Accessories:
APC for FC/ST/SC Connectors,AC/DC Adapter
Optional adapters:
|
FC/PC male -ST/APC female Adapter |
FC/PC male -SC/APC female Adapter |
|
|
FC/PC male -FC/APC female Adapter |
FC/PC male -LC/PC female Adapter |
|
