  • Product description: INNO Fusion Splicer for fiber optic fusion splicing with Core alignment splicing.
  • INQUIRY

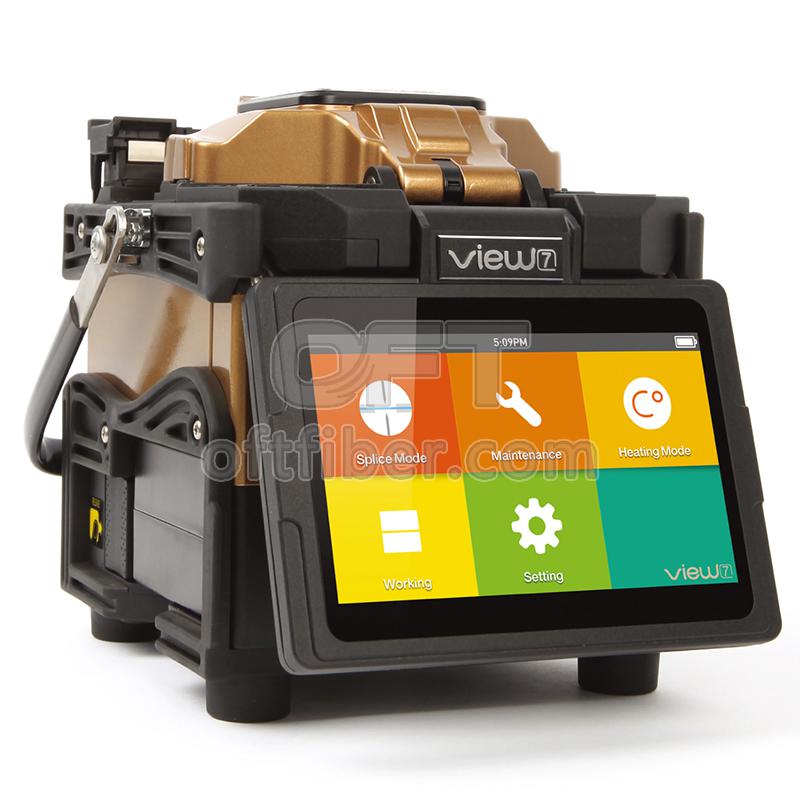

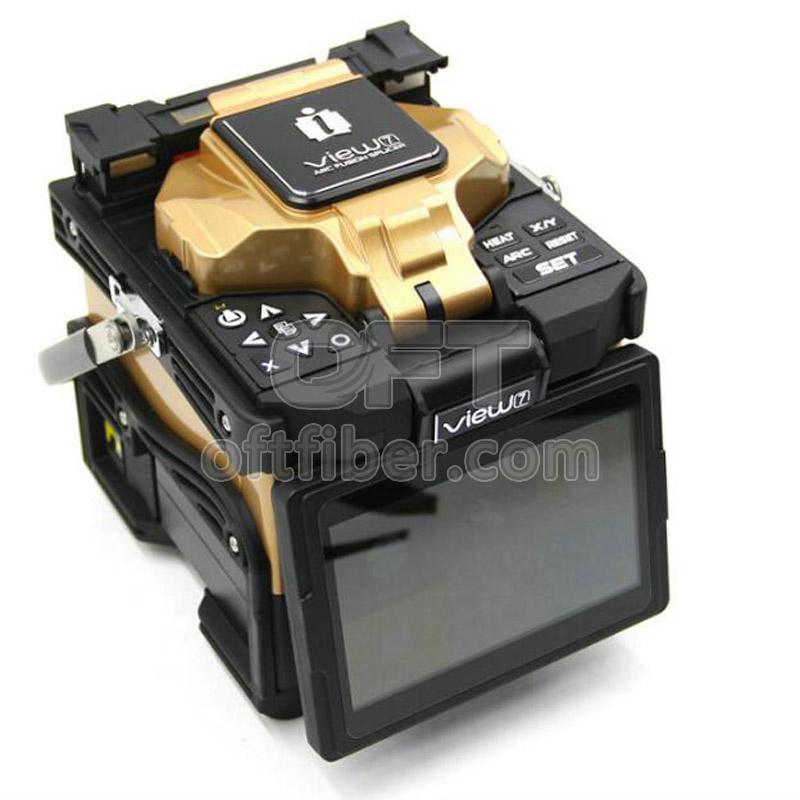

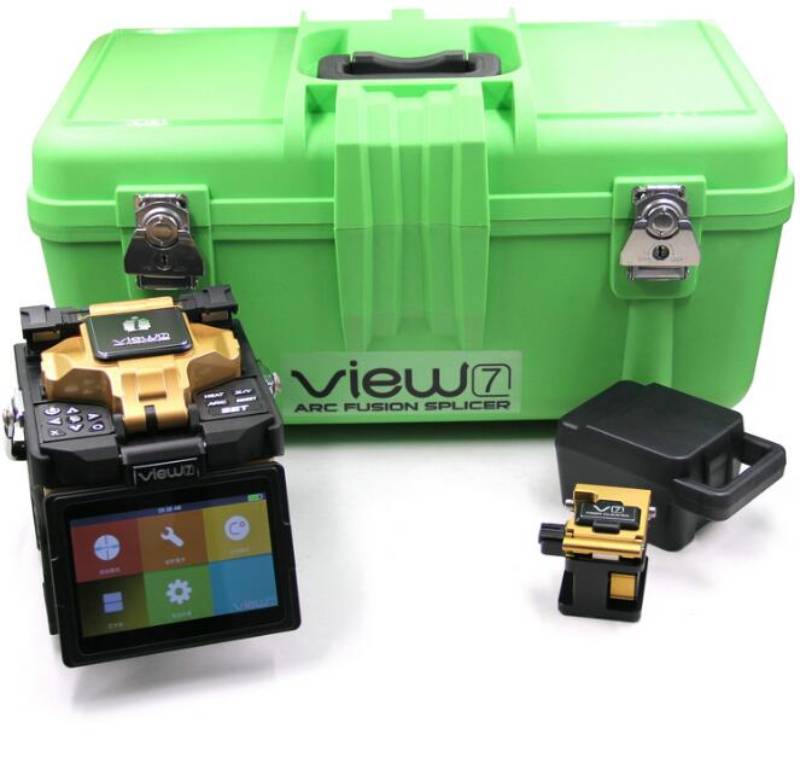

Fusion Splicer View 7

Features
Core alignment splicing (DACAS Digital Analysis Core Alignment System)
The highest 520X magnification and resolution
5" Color LCD touch screen
Double tapping (zoom in & out)
Detachable SOC holder and heating oven for splice-on connectors
3 Bright LEDs for dark environments
Ceramic clamp for improved durability
Easy to replace electrodes
Mirror-less design for easy maintenance

Specifications

Model

View 7

Dimension

160H x 133W x 155D mm (excluding rubber bumper)

167H x 143W x 163D mm (including rubber bumper)

Weight

2.80KG (with battery) / 2.17KG (without battery)

Number of Fiber

Single

Applicable Fibers

SM(G.652&G.657) / MM(G.651) / DS(G.653) / NZDS(G.655)

Compatible Fiber / Cable

0.25~3.0 mm / Indoor Cable (with VFH-40)

Cleaved Length

Diameter: 0.125~1 mm / Cleave Length: 8~16 mm

Cladding Diameter

80~150 μm

Splicing Mode

Max 128 modes

Heating Mode

Max 32 modes

Typical Splice Loss

SM:0.02dB / MM:0.01dB / DS:0.04dB / NZDS:0.04dB/G.657:0.02dB

Return Loss

>> 60 dB

Lighting

3 White LEDs

Splicing Time

Quick mode : 7 sec / Auto mode : 8 sec

Estimated Splice Loss

Available

Protection Sleeve Length

20~60 mm

Heating Time

FP-03 typical heating time: 13 sec

Results Storage

The last 2000 results

Tension Test

1.96~2.25N

Operating Condition

Operating Altitude: 0~5000m above sea level,

0.95% relative humidity, -10~50°C, Max Wind 15m/s

Storage Condition

0~95% relative humidity, -40~80°C

Display

90° bi-directional view, 5.0” Color High Resolution Display

Fiber View & Magnification

X, Y, XY, X/Y : 520X Magnification

Power Supply

AC Input 100-240V, DC Input 9-14V

No. of Splice

Heating with Battery

9800mAh Battery Capacity

Typical 355 times (Splice+Heat)

Operating Methods

Button / Touch screen

Automatic Calibration

Automatic arc calibration by air pressure and temperature

Electrode Life

3500 arcs, can be extended by using an electrode grinder

Terminal

USB2.0 / MINI USB
