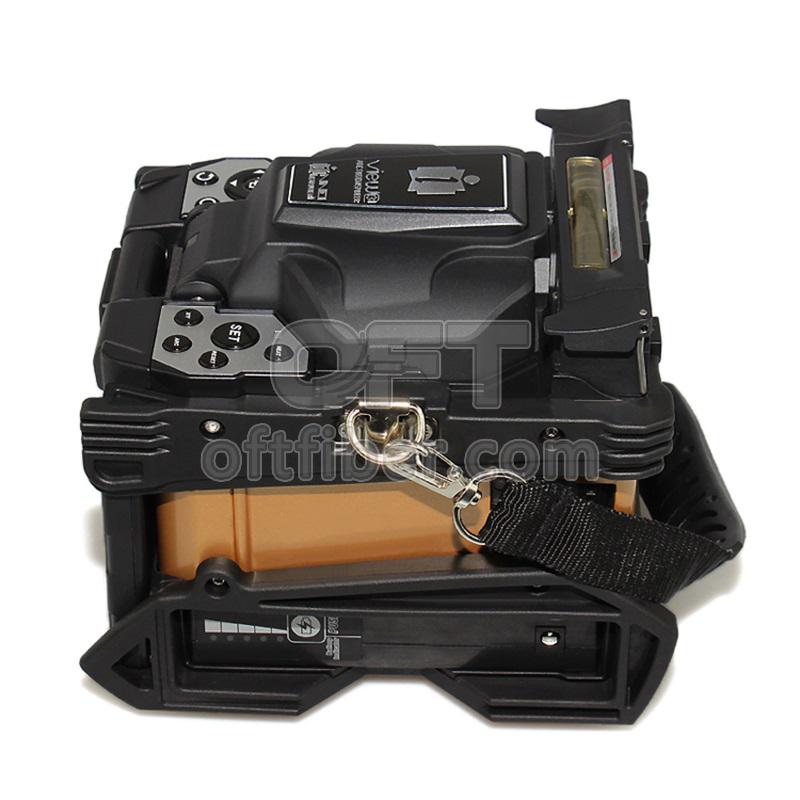

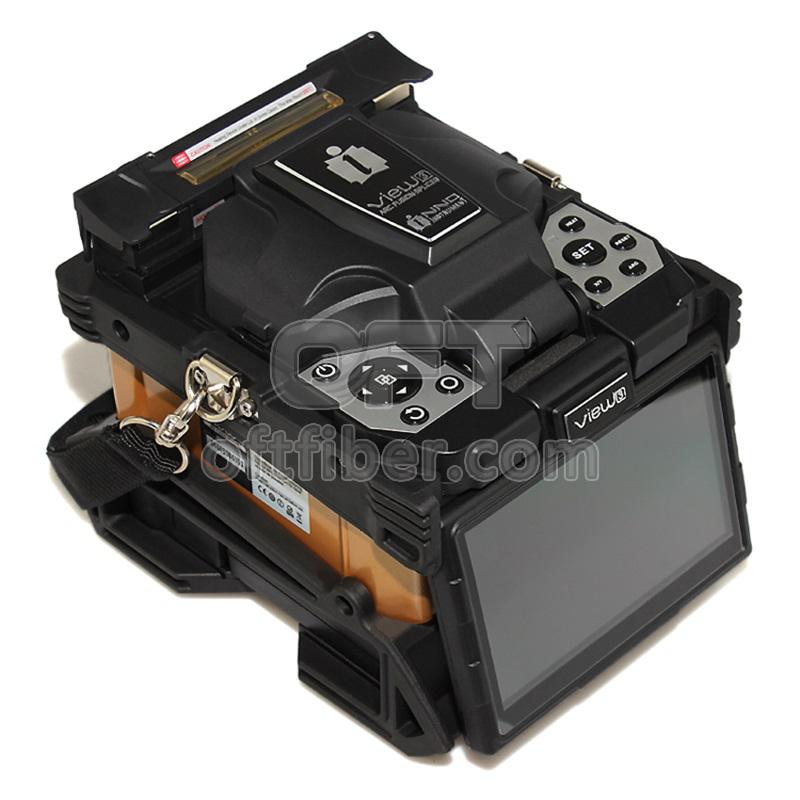

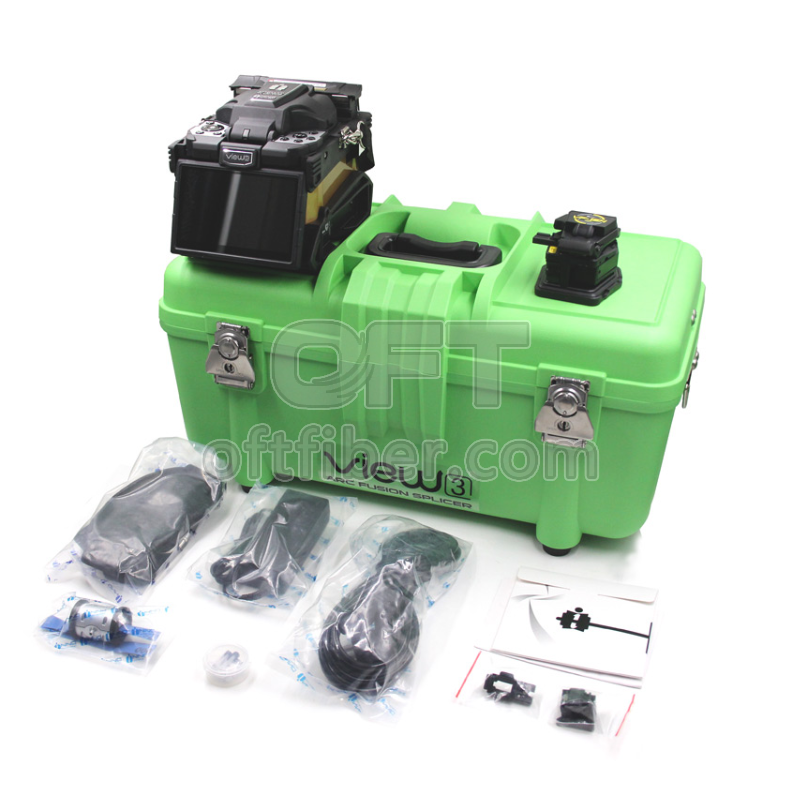

INNO Fusion Splicer View 3

Product description: INNO Single Fiber Fusion Splicing Machine View3 is for SM,MM and NZDS fiber for fiber optic fusion splicing.
INQUIRY

Fusion Splicer View 3

Features

New fully-digitized design;
Small in size, lightweight: only 2.31kg with battery;
Takes only 8 seconds for splicing, 25 seconds for pyrocondensation;
Can set automatic start of splicing or of pyrocondensation upon close of the cover;
Simultaneous display of X/Y axis; zoom in up to 520 times original size;
Real time discharging for adjustment; no need for further adjustment;
Electrode has a long life; discharging times up to 3500;
With USB 2.0 and mini USB ports;
5 inch digital high resolution LCD;
Precise real-time display of remaining battery capacity;
Built-in high capacity battery, which enables up to 220 times of splicing and heating;

Specifications:

Model	View 3 Fusion Splicer Machine
Dimension	143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)
Weight	2.31KG (with battery) / 1.95KG (without battery)
Number of Fiber	Single
Applicable Fibers	SM(G.652&G.657) / MM(G.651) /DS(G.653) / NZDS(G.655)
Compatible Fiber / Cable	0.25~3.0 mm / Indoor Cable
Cleaved Length	Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
Cladding Diameter	80~150 μm
Splicing Mode	Max 128 modes
Heating Mode	Max 32 modes
Typical Splice Loss	SM:0.03dB / MM:0.02dB / DS:0.05dB / NZDS:0.05dB/G.657:0.03dB
Return Loss	>> 60 dB
Lighting	3 White LEDs
Splicing Time	Quick mode : 7 sec / Auto mode : 9 sec
Estimated Splice Loss	Available
Protection Sleeve Length	20~60 mm
Heating Time	FP-03 typical heating time: 30 sec
Results Storage	The last 2000 results
Tension Test	1.96~2.25N
Operating Condition	Operating Altitude: 0~5000m above sea level, 0.95% relative humidity, -10~50°C, Max Wind 15m/s
Storage Condition	0~95% relative humidity, -40~80°C
Display	90° bi-directional view, 5.0” Color High Resolution Display
Fiber View & Magnification	X, Y, XY, X/Y : 520X Magnification
Power Supply	AC Input 100-240V, DC Input 9-14V
No. of Splice Heating with Battery	4200mAh Battery Capacity Typical 170 times (Splice+Heat)
Operating Methods	Button / Touch screen
Automatic Calibration	Automatic arc calibration by air pressure and temperature
Electrode Life	3500 arcs, can be extended by using an electrode grinder
Terminal	USB2.0 / MINI USB
