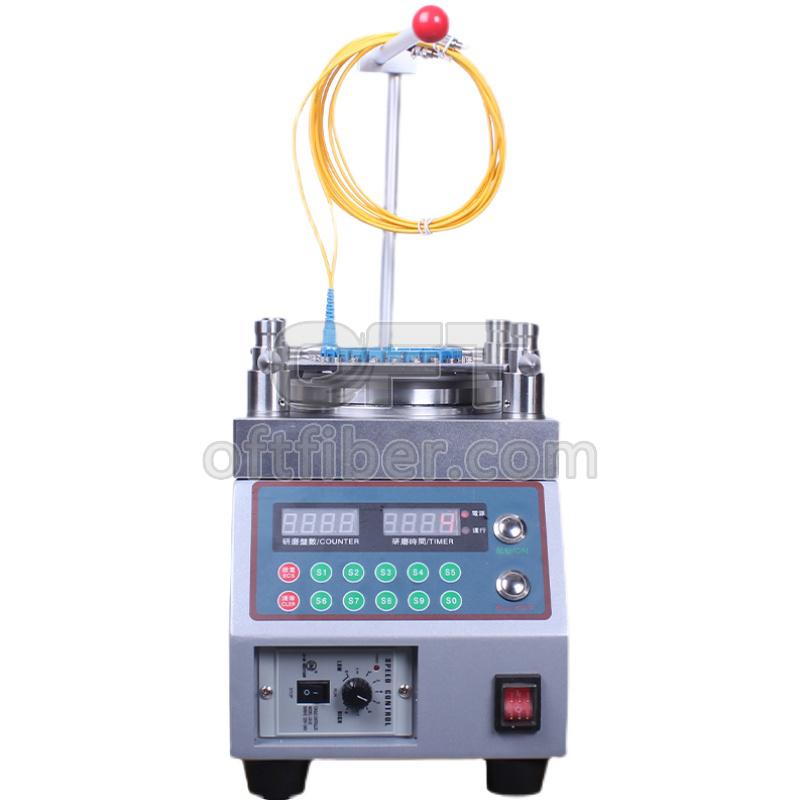

Four corners pressurized fiber end face grinding machine/Polishing machine OFT-20M

Four corners pressurized fiber end face grinding machine/Polishing machine OFT-20M:

1. It can undertake 24 grinding head at the same time ,so it’s very suitable for mass production.

2. Grinding process using LCD displays，it can simultaneous display Time Speed and Counter，Make the process easier to control quality.

3. Grinding fixture using four pressure, is determined by the amount of pressure into the

elastic cushion the grinding pressure, simple operation, product processing and high precision

and good consistency.

4. It can produce mail in accordance with IEC standard geometric end face.

5. Using planetary trajectory grinding way.

6. Using the new I.P.C fixture (each insert core can be pressurized independently) technology makes the qualification rate of industrial production is more high, and Ken whether grinding

head or 24 connection, grinding, high operating flexibility.

7.MU and LC connector maximum grinding 24, SC, FC, ST connector up to 20.

8. Use high quality heat treatment of stainless steel, make the machine keep the accuracy

and the use of very high precision and practicality.

Specifications:

Machine size ： L×W×H =220×280×310（mm）

Work environment ： The temperature 10℃～40℃；

Relative humidity ： 5%～85%

The noise sound ： no-load < 50db

Vibration dynamic ：

Working 0.25g 5～100Hz 10min

Stopped 0.50g 5～100Hz 10min

Acceptable impact ： 50 mm high drop（Single touch the ground）

Electricity ： 220～230VAC 50Hz/60Hz

POWER： 115W

Transfer speed： 0～110r/min

Storage condition

Environment temperature： -40℃～85℃

Relative humidity ： 15%～85%

Vibration dynamic： 1.0g 5～100Hz 45min
