OFT Fiber Optic Polishing Film/Lapping Film

OFT Fiber Optic Polishing Film/Lapping Film

Product description: OFT offers a range of films which are available for epoxy removal, grinding, fine polish and cleaning of industry standard fiber optic connectors and fiber ferrules.
INQUIRY

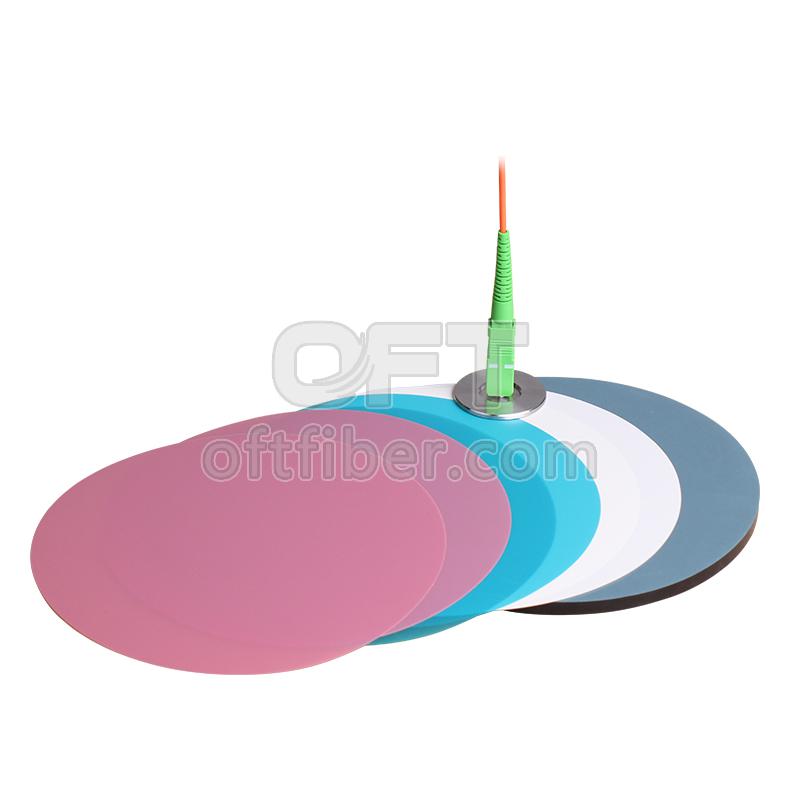

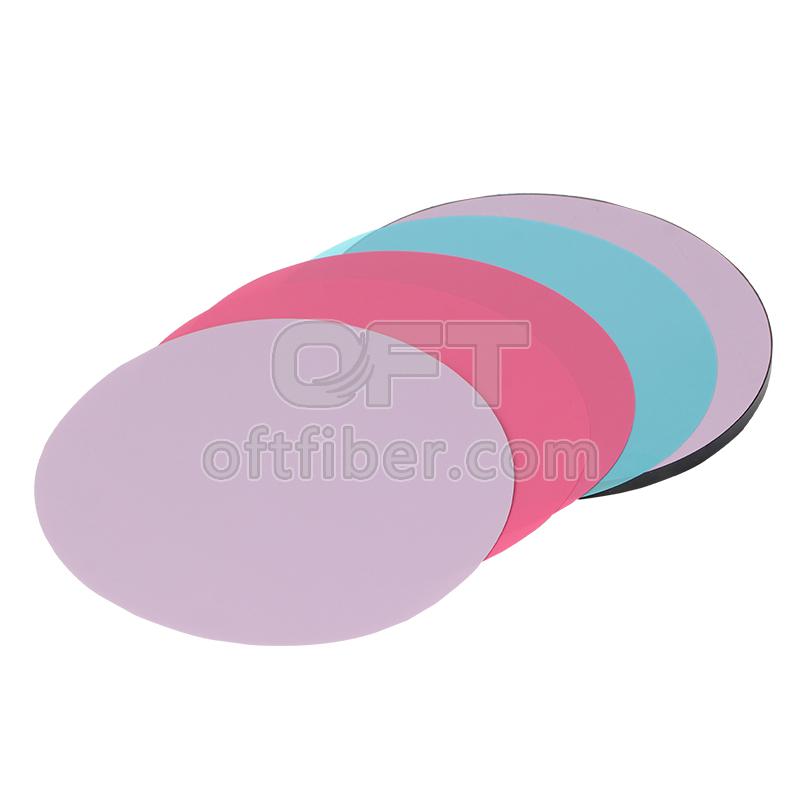

OFT Lapping Film

Specifications of Lapping Film:

Type of Lapping Film		D Lapping Film			SC Lapping Film		AO Lapping Film		CO Lapping Film	SO Lapping Film
		Diamond			Silicon Carbide		Aluminum Oxide		Cerium Oxide	Silicon Oxide
Grit Size /μm	80	○
	60	○
	45	○
	40						○
	30	○			○		○
	16	○					○
	15	○	○		○		○
	12						○
	9	○	○	○	○		○
	6	○
	5				○		○
	3	○			○	○	○	○
	2				○		○
	1	○			○		○
	0.5	○					○		○
	0.3						○
	0.01									○
Recommended Polishing Medium		Water/Oil			Water/Oil		Water/Oil		SOQ-12D	Water
Standard Size	Sheet	114mm114mm, 152mm152mm (6inch), 228mm*228mm (9inch)
	Disk	Φ70mm, Φ110mm, Φ127mm (5inch) ,Φ203mm (8inch)

Note：Other lapping films are available upon request.

Features of Lapping Film:
1. Perfect grinding efficiency for surface’s high-resolution with different precision demand
2. Consistent finishing performance
3. High durability and cost reduction
4. Available for dry polishing and wet polishing

Applications of Lapping Film:

1. fiber-optic lapping;

2. Ferrule Connector(Fiber Channel) lapping;

3. Pigtail polishing.
