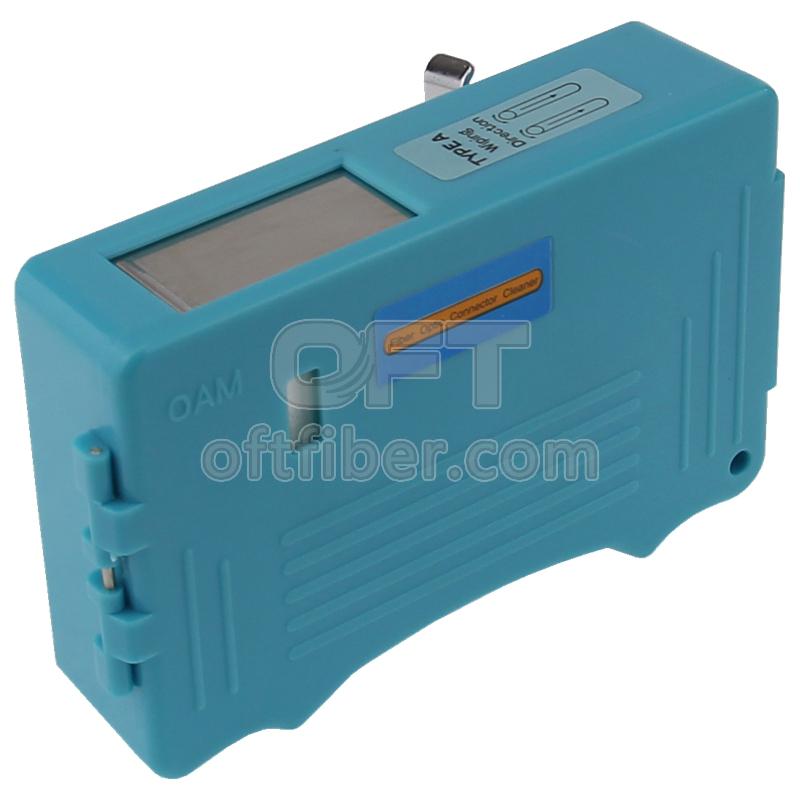

Fiber Optic Connector Cleaner OFT-01

Application areas in communications

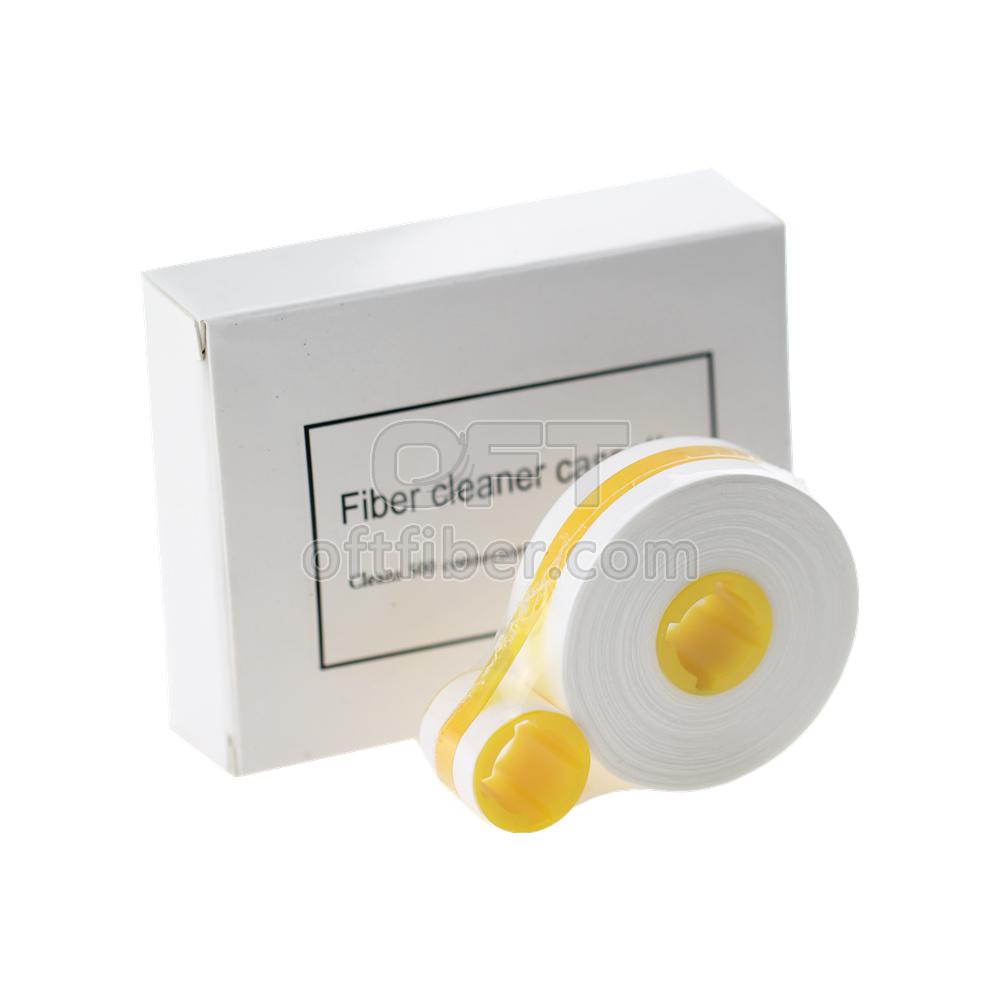

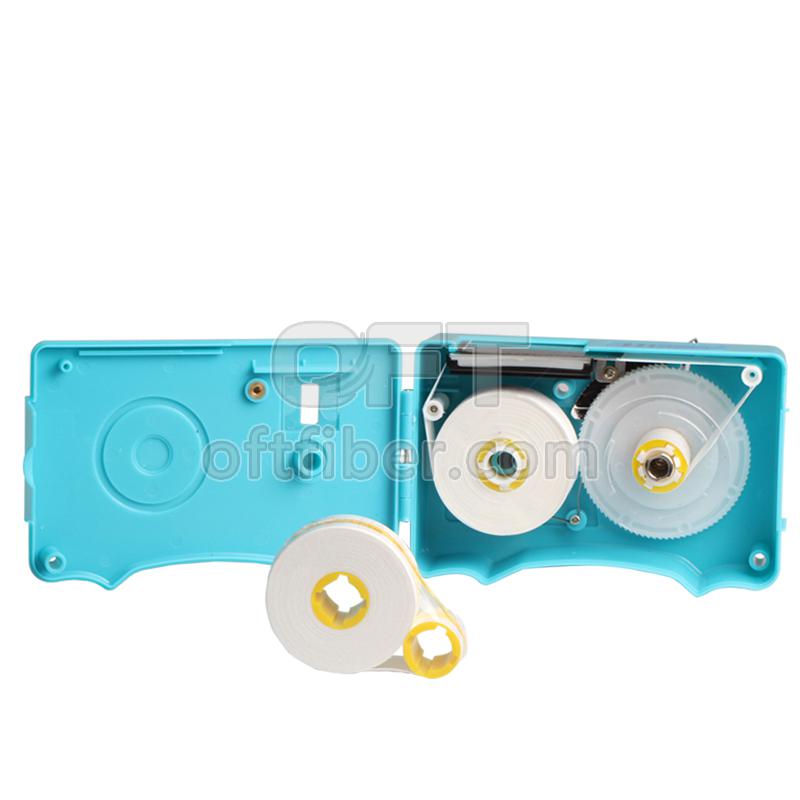

Any equipment that needs optical fiber connector will be able to use the fiber connector cleaner.Many telecom/datacom equipment have interface cards that use optical fiber as transmit or receive port.It can be used for SC, FC, ST, D4, LC, MU,DIN and Biconic connectors. Cleaning tape is replaceable, thus reducing long-term cost.
Some of these equipment are:

1. Fiber Optic Transport industry: SDH/SONET,PDH,WDM,Cable transport equipment, and other telecom transport equipment.

2.Frame Relay

3.ATM

4.Router

5.Class 5 central switch

6.Multimedia equipment

7.Fiber Channel

8.Gigabit Ethernet

9.FDDL

10.ADSL

11.Optical Switch

Cleaning Procedure

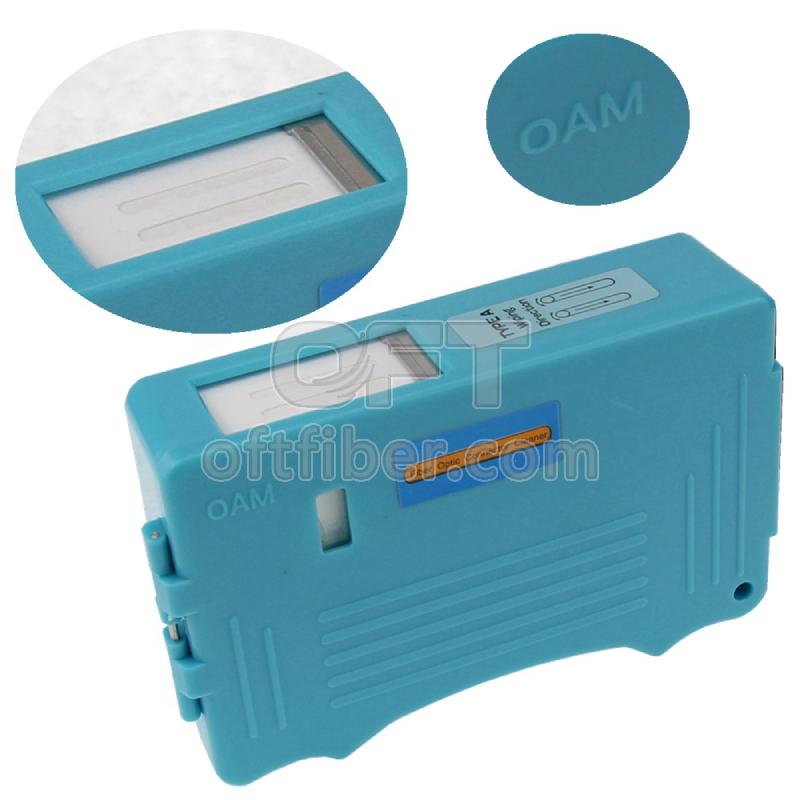

Push up the sliding key to open the two cleaning slots:

Slide the fiber connector tip against the cleaning tape on one slot to wipe it. Repeat the step on the other slot for better result.

Release the sliding key to close the  cleaning  slot automatically. Repeat the step to clean other connectors.

Product Specifications

1.Cleaning times: 500

2.Cleaning result: -20 to -50 dB(Return Loss)

3.Operating Temp: -10 to 50 degree C

4.Storage Temp: -30 to 70 degree C

5.Weight: 200 g
