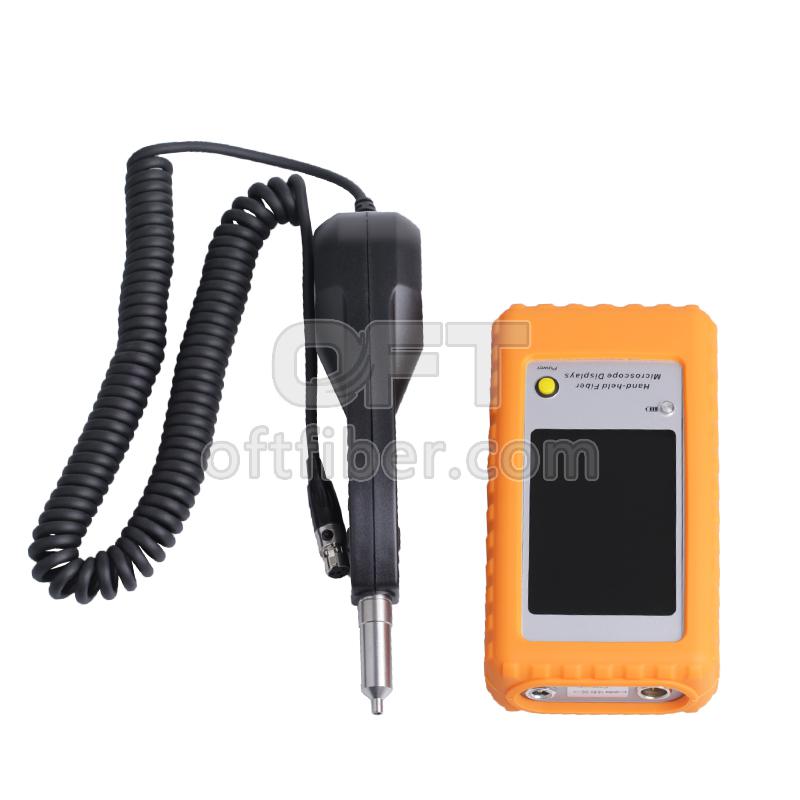

The Fiber Optic Video Microscope is a portable, video microscope used to inspect fiber optic terminations. More specifically, it is used to inspect hard-to-reach connectors that are installed on the “backside” of patch panels or inside hardware devices. It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.
Available Applications
· Patch
Panel Inspection
Many patch panels are designed to allow the front connector to be easily inspected, but the back one is OFTen difficult to access. Inspecting the connector on the front side of the panel can usually be performed with a simple fiber inspection microscope. However, the back connectors are not as easily inspected with traditional microscopes, thus requiring time-consuming troubleshooting. The offers a fast and effective means of installing, troubleshooting or maintaining fiber optic patch panels.
· Inspection of Cable Assemblies

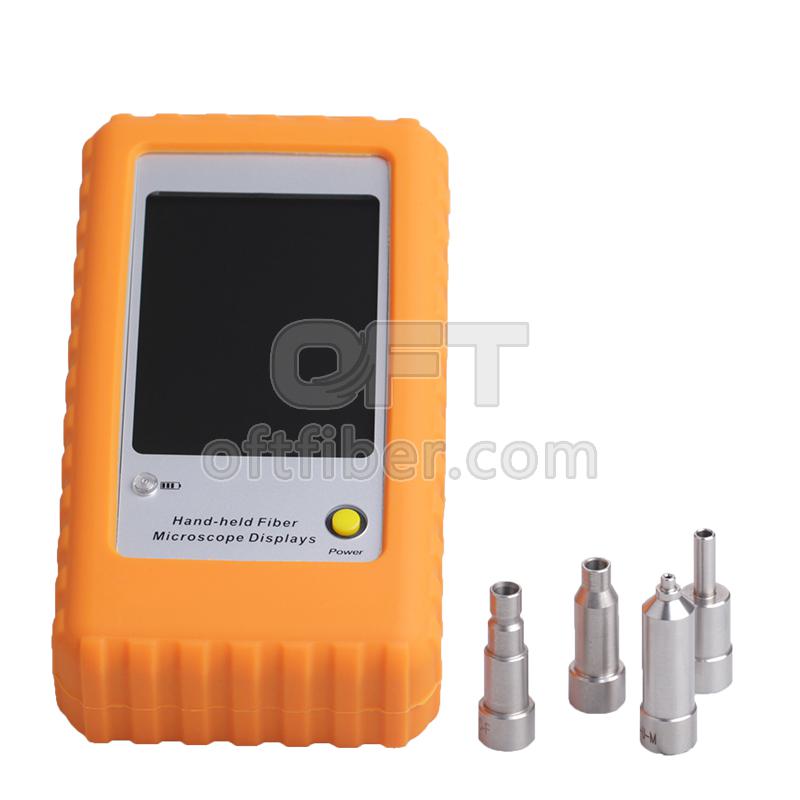

When Video Inspection Probe is equipped with proper Adapter Tip, you can also inspect patch cords, pigtails, and cable assemblies.
Technical Specifications
Video Inspection Probe
|
Magnification |
400x (9’’ Monitor) 250x (3.5’’ Monitor) |
|
Resolution Ratio |
0.5 um |
|
Display |
3.5’’ TFT-LCD, 960x240 pixels |
|
Video Output |
NTSC / PAL |
Application
|
Adapter Type |
Description |
|
25-U-M (2.5mm UPC Male) |
FC/SC/ST/E2000 patch cord UPC termination |
|
125-U-M (1.25mm UPC Male) |
LC/MU patch cord UPC termination |
|
25-A-M (2.5mm APC Male) |
FC/SC/ST/E2000 patch cord APC termination |
|
125-A-M (1.25mm APC Male) |
LC/MU patch cord APC termination |
|
25-U-F (2.5mm UPC) Female) |
FC/SC/ST/E2000 UPC bulkhead |
|
LC-U-F (LC UPC Female) |
LC UPC bulkhead |
|
SC-A-F (SC APC Female) |
SC APC bulkhead |
|
FC-A-F (FC APC Female) |
FC APC bulkhead |
|
LC-A-F (LC APC Female) |
LC APC bulkhead |
|
Power Supply |
3.7V, 4500mA 5V/1A rechargeable Li Battery |
|
Weight |
1.5 kg |
|
Work/Storage Temp. |
-20℃~+50℃ / -30℃~+60℃ |

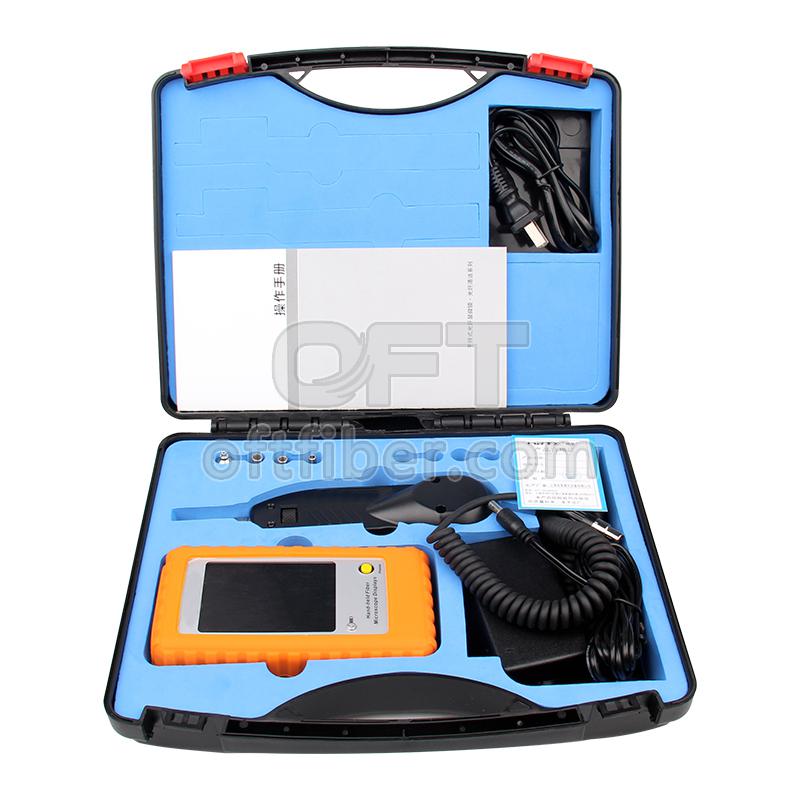

Accessories
|
Type |
Function Description |
|
Standard Accessories |
Standard Accessories Inspection Probe x1 3.5’’ monitor x1 25-U-M x1 ; 125-U-M x1 25-U-F x1 ; LC-U-F x1 Recharger ; Manual ; Carrying bag ; Li Battery |
|
Optional Accessories |
25-A-M ; 125-A-M ; SC-A-F ; FC-A-F ; LC-A-F AV-USB 2.0 Converter |
